NERO-DRAIN CUSPATED SHEET DRAIN.

* Supplied in 1.5m x 20m Rolls with/without Geotextile attached as per requirement for Quick & Easy Installation.

ND- NeroDrain

Dimple Boards Dimple Drain.

Part No:

20004 ND-10W, (No Geo)

20003 ND-12

20002 ND-20

Height

10mm

12mm

20mm

Length

20m

20m

20m

Width

1.50m

1.50m

1.50m

* Supplied in 1.5m x 20m Rolls with/without Geotextile attached as per requirement for Quick & Easy Installation.

Resources

Related Products

Product Features:

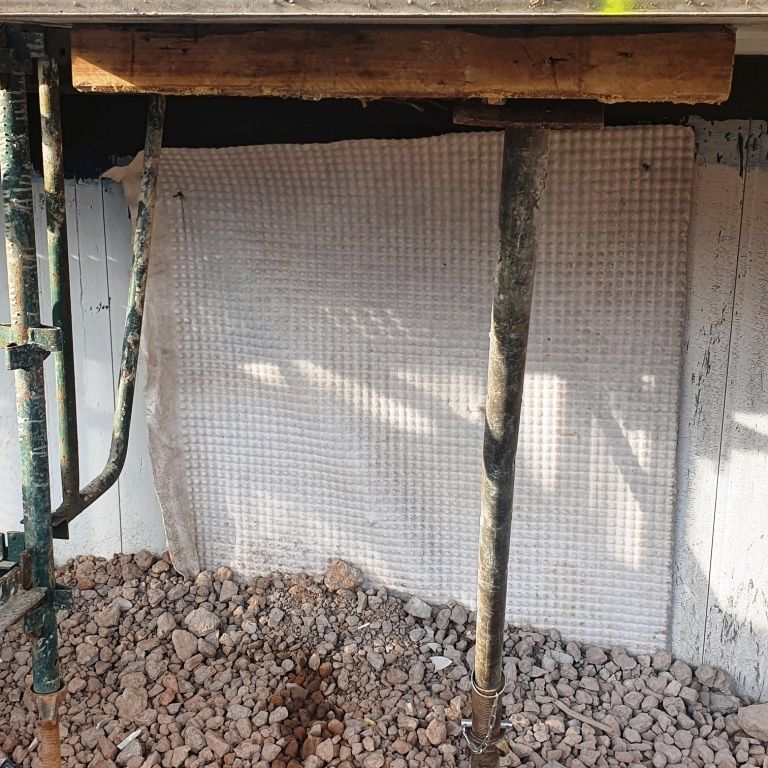

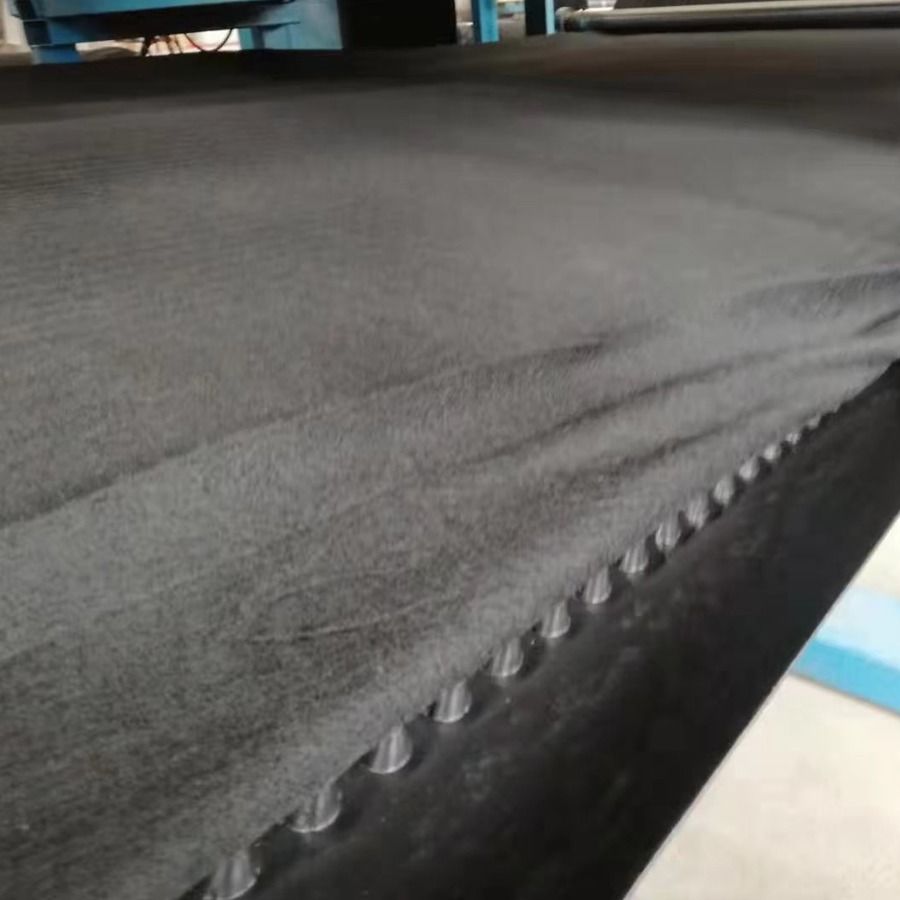

Based on the Principles of Nature Rainsmart Solutions has designed and developed its environmentally friendly NERO DRAIN ND-12 & ND-20 Prefabricated Drainage Composite. Nero Drain is a dimpled plastic sheet that provides effective protection for Waterproofing Membrane, and drainage for foundation walls and other underground structures. The integrated non-woven geotextile covering the dimples prevents soil particles blocking the drainage sheet, Dimples creates an air gap for reliable ventilation and allows inflow, with its dimple structure effectively captures and transports high water volumes and resists high loads from earth and formwork above.
Made from Prime HDPE material using the techniques of precise thermoforming core technology NERO DRAIN ND-12 & ND-20 System supersedes all others in performance and quality.

NERO DRAIN ND-12 & ND-20 Sheet Drain System is manufactured in widths from 1.5m to up to 3m roll lengths varying from 20 m to 25m dependent upon product selection. Cutting of the roll, on site, is easy, to suit the application. The NERO DRAIN ND-12 & ND-20 sheet Drain System is used to replace conventional drainage aggregate systems, saving time and money due to its lightweight structure and quick and easy installation without the need for any heavy equipment.

System Benefits:

  • Quick and light weight easy to install. can be installed by unskilled labourer without any heavy machinery.
  • 90% void ratio providing maximum discharge capacity.
  • High void surface ratio ensures larger surface contact area for quick discharge and NO traditional clogging problems unlike gravel-based systems.
  • Made from prime material, guaranteed product quality and performance
    Environmentally friendly WSUDS for water management.
  • Proven High Load Bearing Capacity of 25 t/m2 + for various depth applications.
  • Complete 3 D flow throughout the hollow structure. Unlike gravel-based uni-directional systems which can clog up over time and cause surface flooding.
  • 20 years + Design Life.
  • Backed by stringent testing regime and constant QA/ QC.



Applications:

  • Plaza Decks, Roof Decks and
  • Planters Boxes

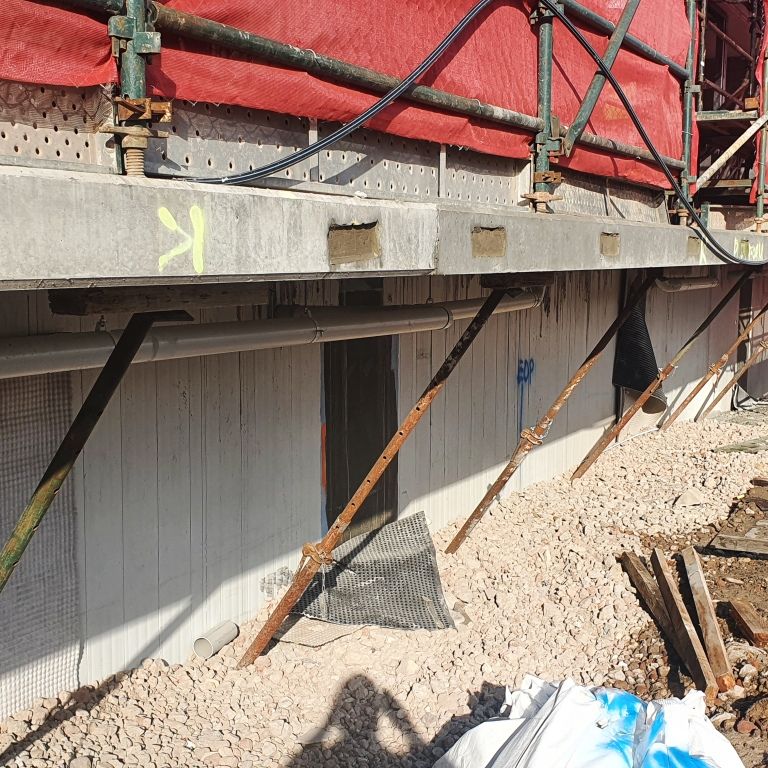

  • Retaining Walls

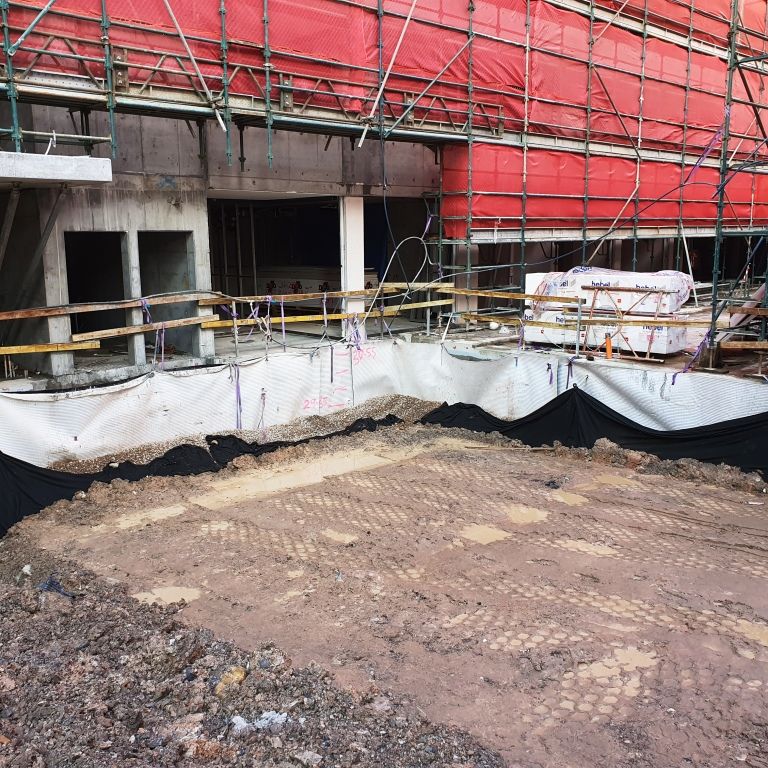

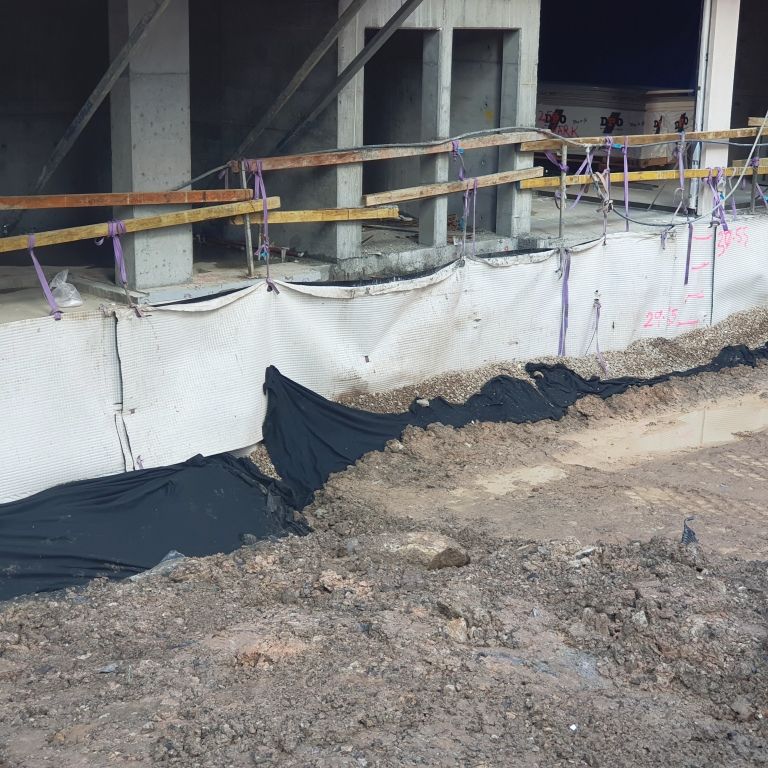

  • Foundations and Basement Drain
  • Tunnel Drainage

Specification:



Nero Drain ND-12

Nero Drain ND-20

Property

Units

Test Method

Core Properties

Core Structure

-

Physical

Single Sided Cuspated Flat Back

Single Sided Cuspated Flat Back

Core Material

Polymer

Component

HDPE

HDPE

Core Thickness

mm

ASTM D-1777

12

20

Core Open Volume

%

Physical

> 90

> 90

Sheet Thickness

mm

ASTM D-1777

1.0

1.0

Geotextile Properties

Type

Construction

Component

Nonwoven Geotextile

Nonwoven Geotextile

Material

Polymer

Component

PP/PET

PP/PET

Color

Visual

Visual

White

White

Flow Rate

l/m2/s

ASTM D 4491

> 180 l/m2/s

> 180 l/m2/s

Geocomposite Properties

Compressive Strength

kN/m2

ASTM-1621

> 225

> 250

Discharge Capacity

l/min/m

ASTM-D4716 (i=1.0)

> 195

> 275

Geocomposite Roll Physical Properties

Roll Width

m

Physical

1.4

1.4

Roll Length

m

Physical

20

20

Roll Weight

kg

Physical

20

28

Shipping Size

m

Physical

0.6 Dia x 1

0.9 Dia x 1
