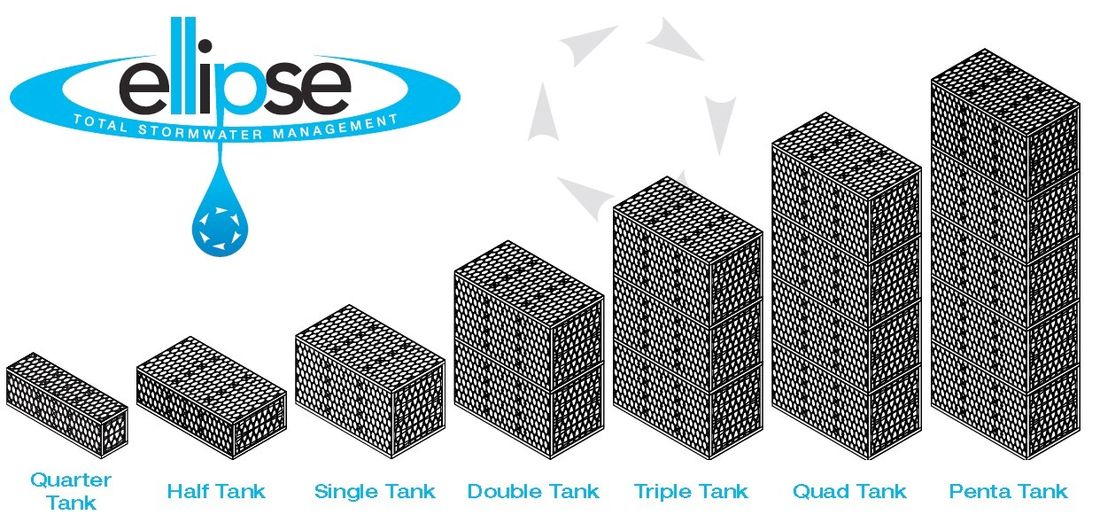

Ellipse® Tank Modules:

QUADTANK2.jpg - large

Single Ellipse Tank

QUADTANK4.jpg - large

Double Ellipse Tank

QUADTANK6.jpg - large

Triple Ellipse Tank

*Higher Modules available, please refer to data sheet & specifications.

Part No: 90001 Single Module

Metric

Imperial

Length

715mm

28.14"

Width

400mm

15.74"

Height

440mm

17.32"

Resources

Other Products

  • Coming soon...

Product Features:

Rainsmart® Ellipse® Tank Modules are suited to any subsurface infiltration, retention or detention Stormwater applications. Manufactured using recycled materials, the Tank Modules are lightweight, engineered design, structural component developed through research & development. It is ideally used for the construction of underground Infiltration, Reuse, Detention Tanks, Grass Swale, Subsurface interception channels, Septic Leach Drains and light weight void fillers for roof gardens and planter boxes applications.

Rainsmart® Ellipse® Tank Module system supersedes traditional gravel and pipe based systems by far. The system provides a void space ratio of over 95% compared to 30% in typical gravel and pipe based systems. Consequently, the Rainsmart system offers a smaller footprint for the same storage volume, significantly saving the amount of excavation, soil transport, importing clean aggregate and thus reducing earthworks related installation costs, and causes minimum site disruption.

The Ellipse® Tank Modules are available in kit form making it economical and easy to transport and handle. The lightweight nature of the Tank Modules also eliminates the use of heavy machinery, and makes installation quick and easy.

The modular design and stackable structural capabilities of the Tank Modules distribute the loads evenly and allows it to be used, in Traffic and Landscaped areas with high safety factor value. The modular design also means that you can create any shape and size of the underground Stormwater Structure on sites without disturbing the surrounding site conditions and maximize land use pattern.

Rainsmart® Ellipse® Tank Modules has a unique low flow design to provide a total linear access, for inspection and maintenance purpose. This system will allow keeping the debris out of the cage structures; allow flushing out and controlling any silt build-up.

 System Benefits:

  • Onsite Stormwater Management
  • Environmentally friendly made from selected Recycled Polypropylene
  • Recharges Groundwater Table through principle of infiltration.
  • Mitigation of downstream flooding
  • Site space utilization and minimum site disruption.
  • Economical and Low maintenance system and reduces liability issues
  • Modular Structure for design flexibility
  • Heavy load carrying capacity
  • Supplied in Kit form for ease in transportation
  • High void surface ratio for quicker infiltration.
  • Light weight hence no heavy machinery or skilled labor required

 Applications:

Specification:

Tank Dimensions

ALL TANK MODULES H20 TRAFFIC RATED

Module

(Units)

Width

(mm)

Width

(inches)

  Length

(mm)

Length

(inches)

Height

(mm)

Height

(inches)

Single (1)

Double (2)

Triple (3)

Quad (4)

Pent (5)

400

400

400

400

400

15.74

15.74

15.74

15.74

15.74

715

715

715

715

715

28.14

28.14

28.14

28.14

28.14

440

860

1280

1700

2120

17.32

33.85

50.39

66.92

83.46

Module   (Units)

Tank Vol

(Ltrs)

Tank

Vol  (cf)

Tank

Vol   (gal)

Water   storage

Vol   (Lts)

Water   storage

Vol   (cf)

Water   storage

Vol   (gal)

Single (1)

Double (2)

Triple (3)

Quad (4)

Penta (5)

125.77

245.94

366.08

486.29

606.32

4.44

8.68

12.92

17.17

21.41

33.26

64.97

96.70

128.46

160.17

119.47

233.64

347.77

461.97

576.00

4.22

8.25

12.28

16.31

20.34

31.60

61.72

91.87

122.03

152.19

Surface area

 95% void

Material

85% recycled Polypropylene  + 15% proprietary mix

Biological   & Chemical Resistance

Unaffected by moulds and algae,   soil-bourne chemicals, bacteria and bitumen.

Service   Temperature

Flow   Rate

-10°C   to 75°C  (-14°F to 167°F)

0.040   m3/sec

Ultimate Load/ Unconfined Crush Testing

(Results for standard units with 4 Large & 4 Small plate tanks)



Metric

Imperial

Crush Load

> 24.20 t/m2

>34.42 psi

Displacement

8mm

0.31”

Temperature

21-27°C

69.8- 80.6°F

**Heavy Duty Tanks upto 40t/sqm also available.

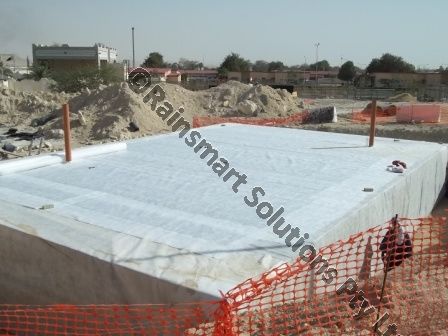

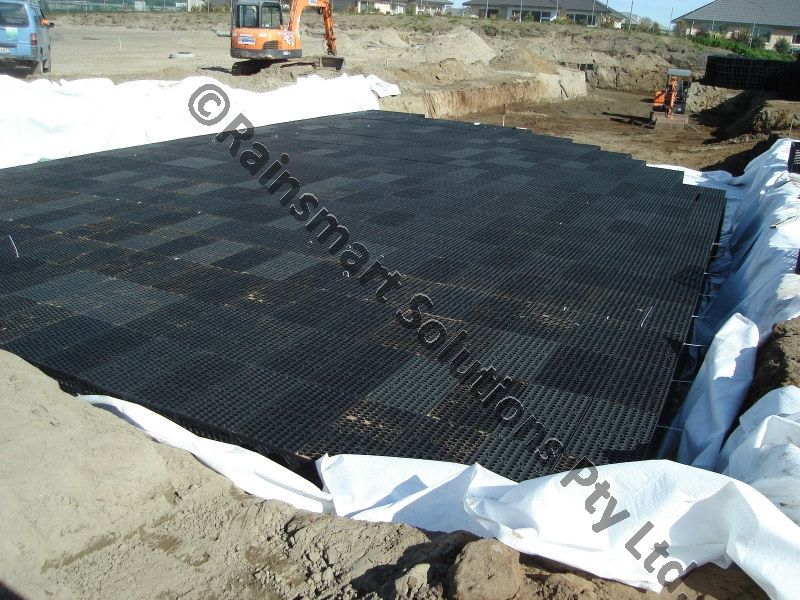

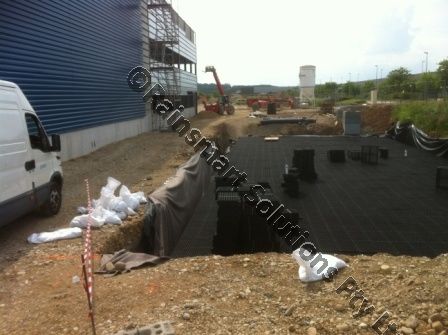

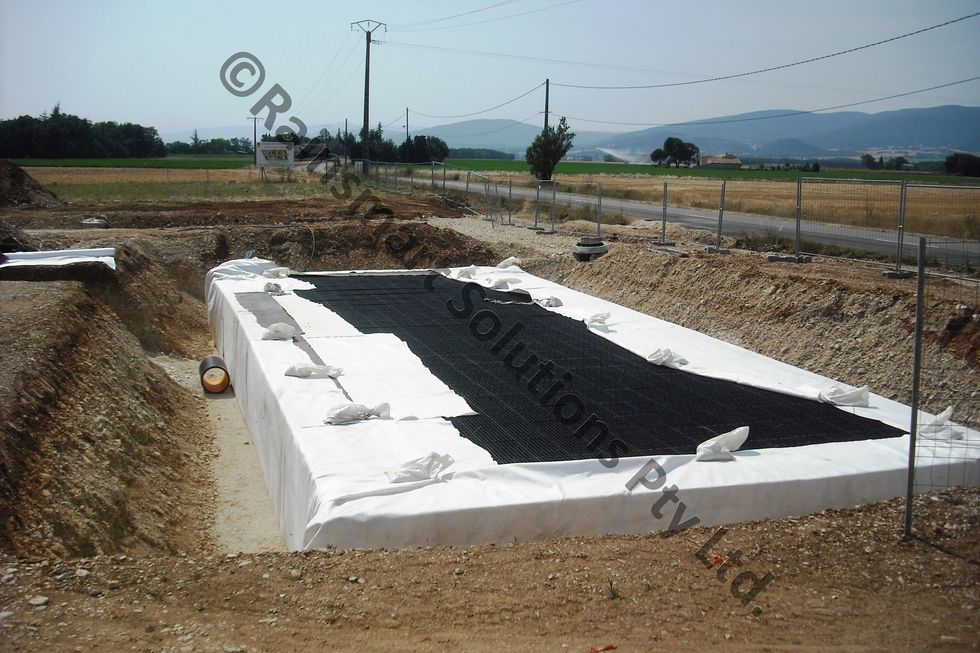

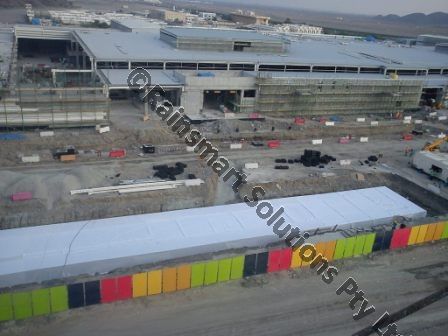

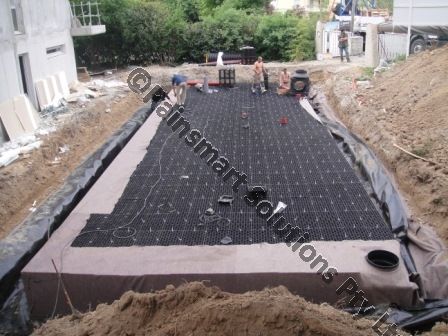

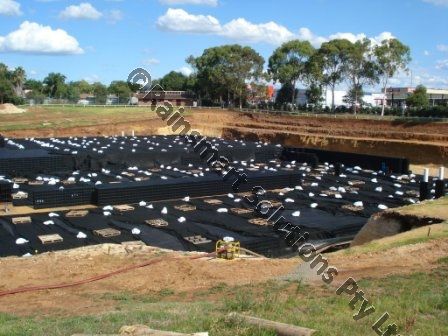

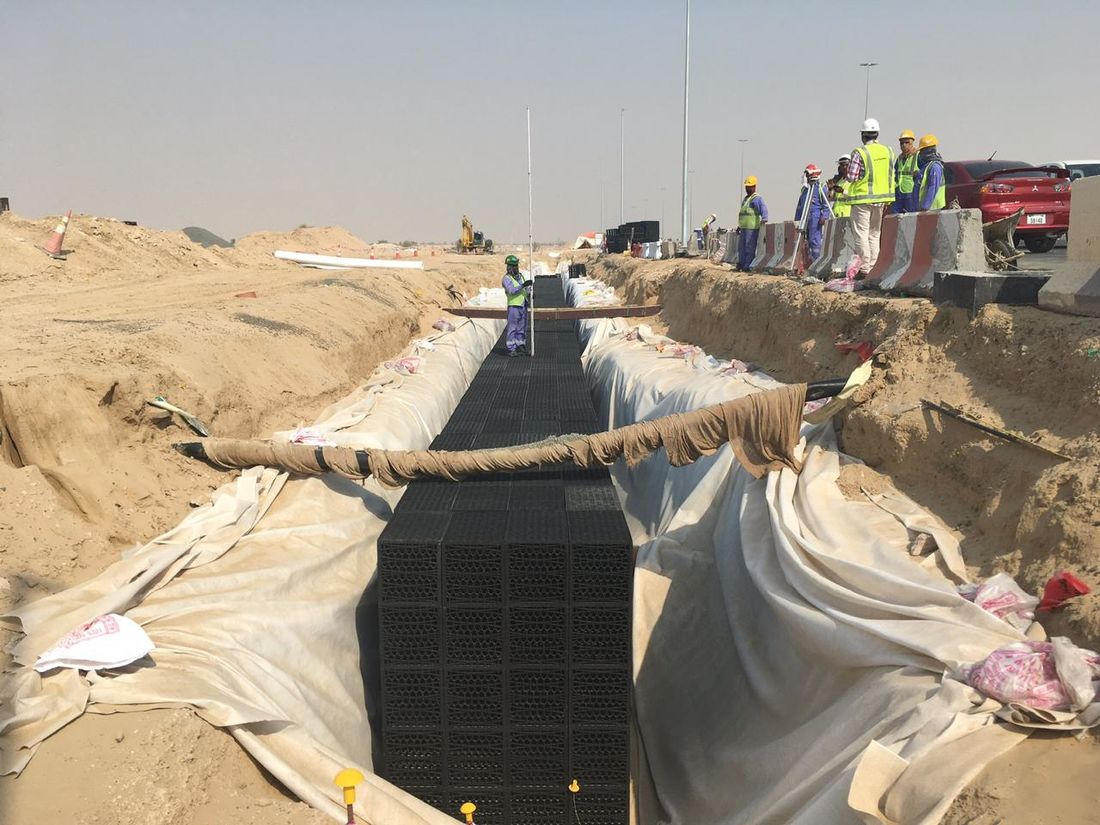

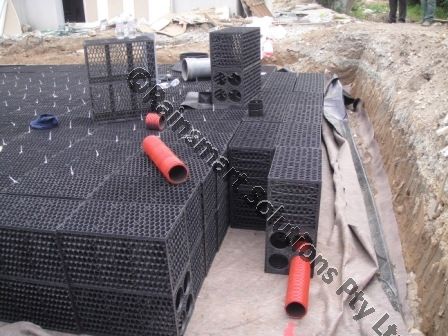

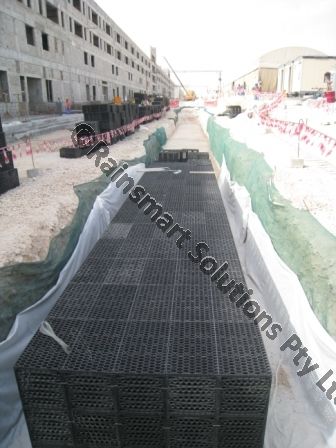

Ellipse Stormwater Management Tank Install 49
